InnoGlass
has designed and produced ultra-thin water film
Compared with common smart PDLC film, ultra-thin water paste smart PDLC film have higher flexibility, easier to install
They also use the same water paste method as common solar films, making the operation simple!
Water Paste Smart Film
Water Paste Smart Film
The normal thickness of smart PDLC film is about 0.4mm, and it is required to be dry installation.
This increases the application difficulty of the product. InnoGlass has designed and produced ultra-thin water paste smart PDLC film with a thickness of only 0.12mm, divided into white and grey.
They are applicable in both architecture and automotive applications.

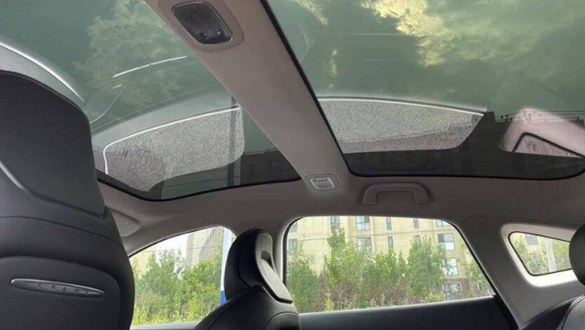

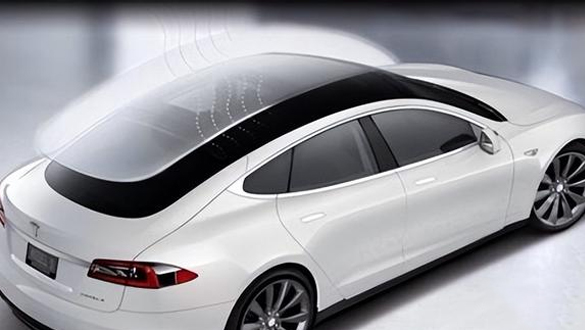

Compared with common smart PDLC film, ultra-thin water paste smart PDLC film have higher flexibility, easier to install, and can be used on curved glass surfaces, such as car skylight windows.
Product Function
Switchable smart glass and film are the wonderful privacy solution material, magic and green material,UVblock and IR insulated function. Green material, best choice for office, meeting room, shower room, window and door glass, projection advertise and so on.
UV AND IR
Blocking Function for Smart Film
Specification
| Product | Voltage | Operation Model | Specification | Electrical | Green Material Function | |||||||||||||
| Working Voltage | Power On | Power Off | Avaliable Color | T% of Visible Light (On) | T% of Par- allel Light * (On) | T% of Parallel Light *(Off) | Haze(On Model) | View Angle | Roll Size | Thickness | Switch Time | Lifetime | Power W/sqm | FREQ Rate | Working T℃ | UV Block | RR Block | |
| Ultra-thin Film (water paste) | 65V | Trans- parent | Opaque | Milky white | 86% | 83% | 4% | 2-3% | About 165 Degree | Roll size: 1.5*50m | 0.12mm | Less than 1 second | More than 100000h （About 20years） | About 3.7 W/SQM | 50-60HZ | Temper -ature: -20℃-80℃ | On / Off Model >98% | On Model >17% Off Model >80% |
| 65V | Trans- parent | Opaque | Grey | 50% | 47% | 4% | 2-3% | Roll size: 1.2*50m | ||||||||||
Installation: Easy to install, avoid bubble, same with normal solar film, reduce the installation difficulty!
Application

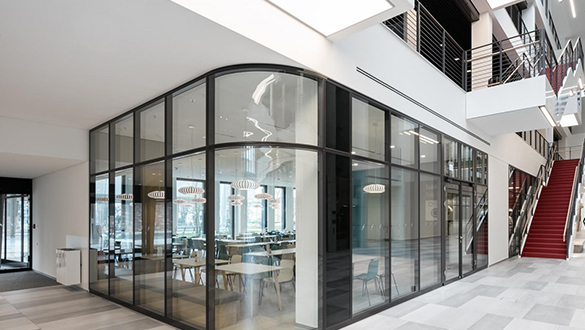

Auto skylight window , window glass, office ,meeting room and so on
