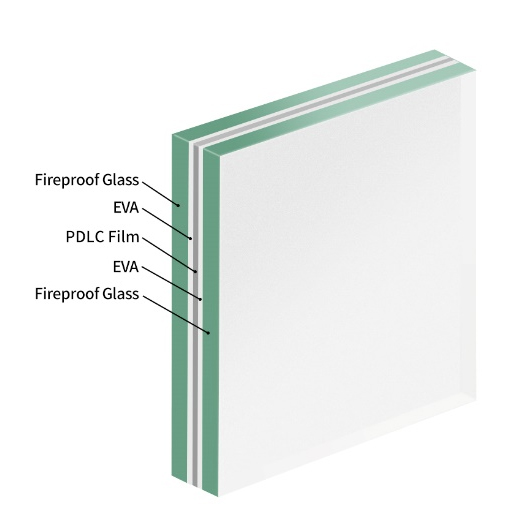

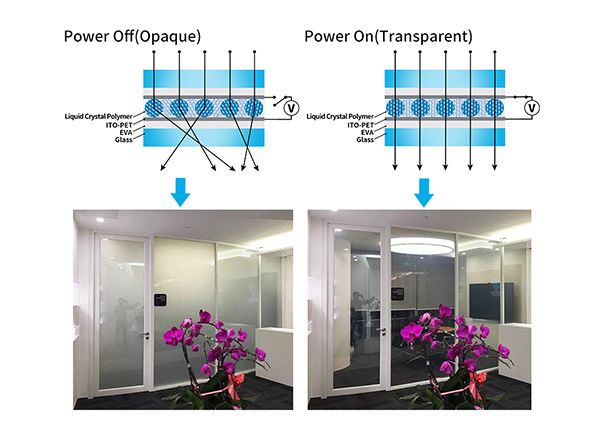

Switchable smart film is the best privacy protection product. It can be directly pasted on the glass as self-adhesive film. At the same time, it can be used as the main laminated material to produce laminate smart glass, hollow smart glass, fireproof smart glass, sound insulation smart glass, bulletproof smart glass, etc. it is widely used in office partitions, bathrooms, conference rooms, doors and windows, building curtain walls, etc, It can add the function of intelligent privacy protection on the basis of meeting the basic functions of glass;

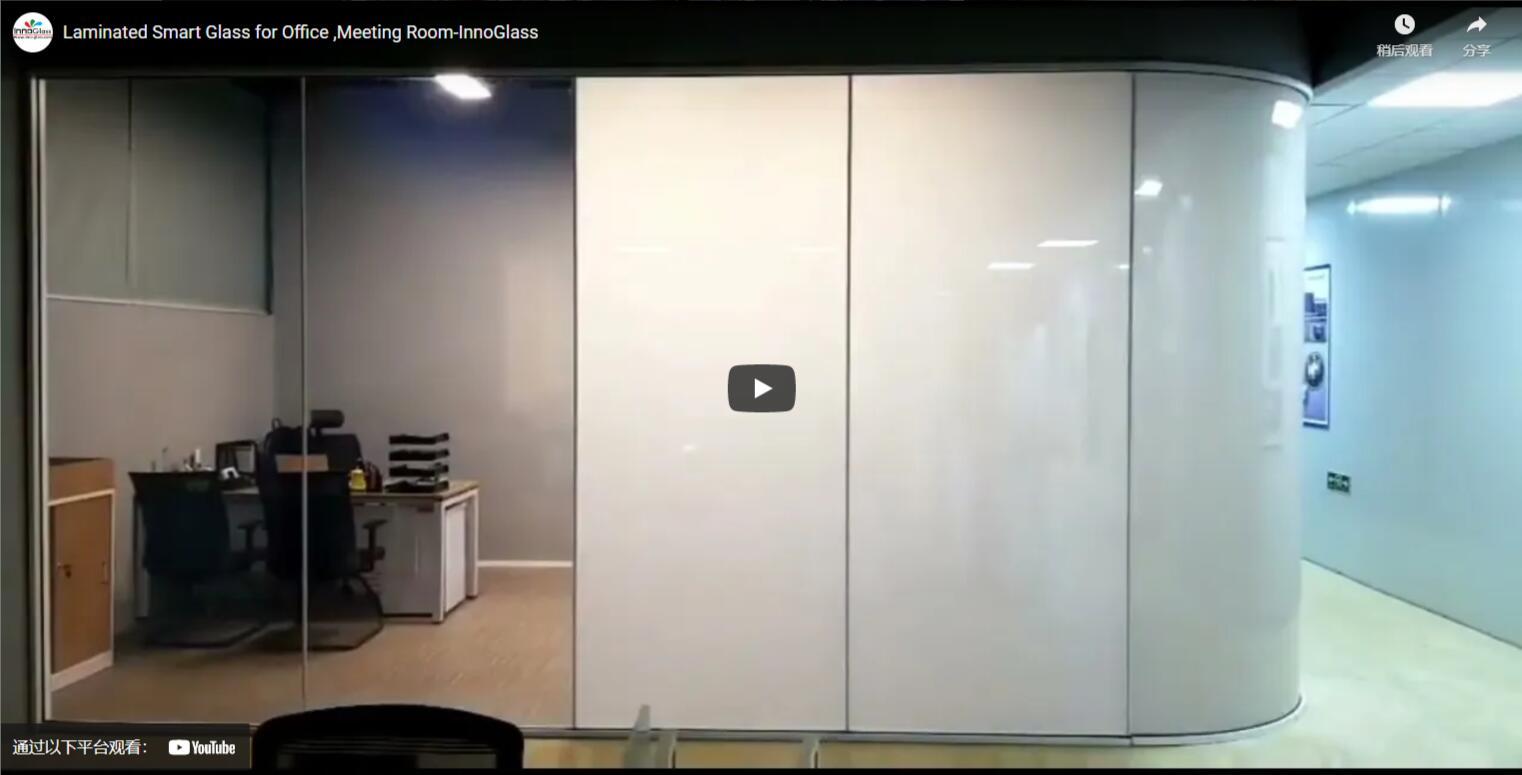

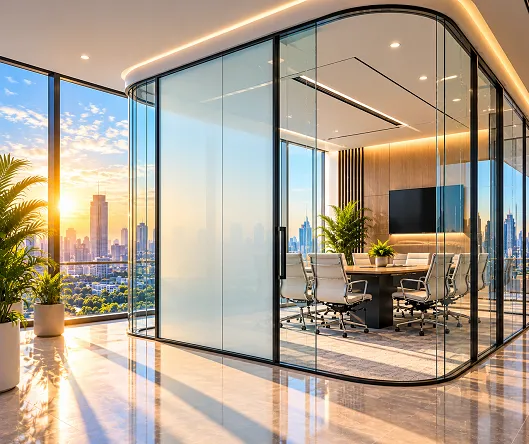

Office

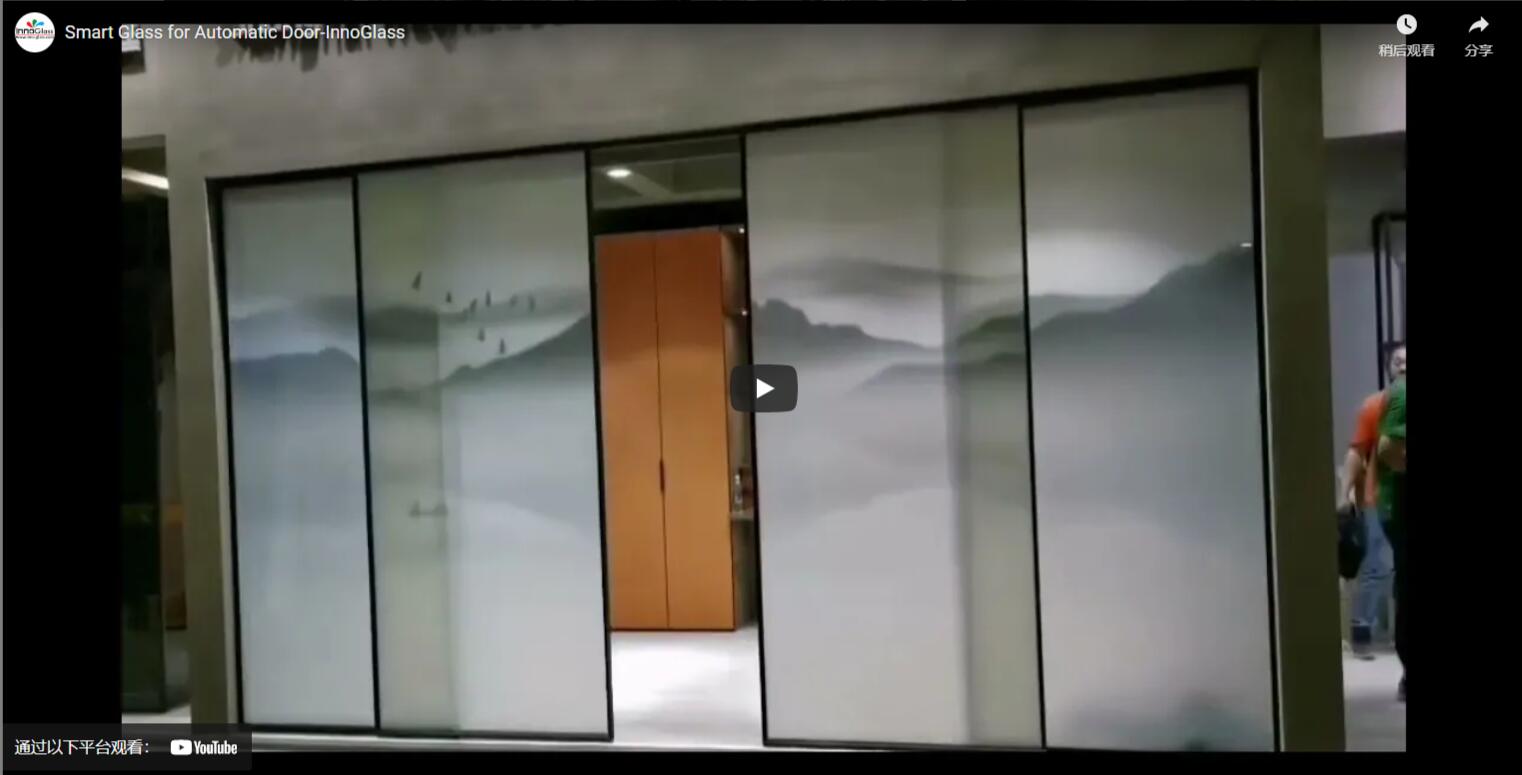

Automatic Door

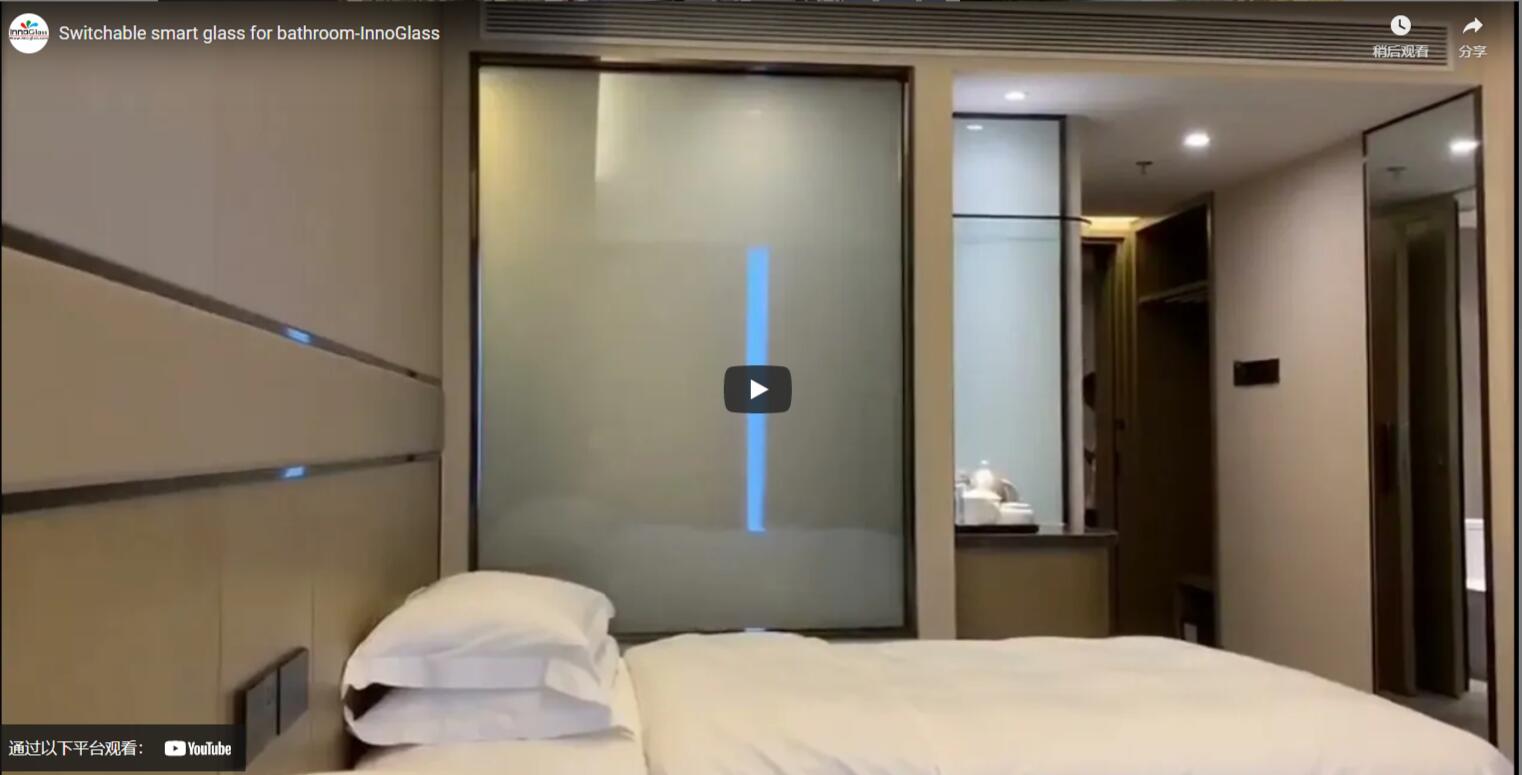

Bathroom

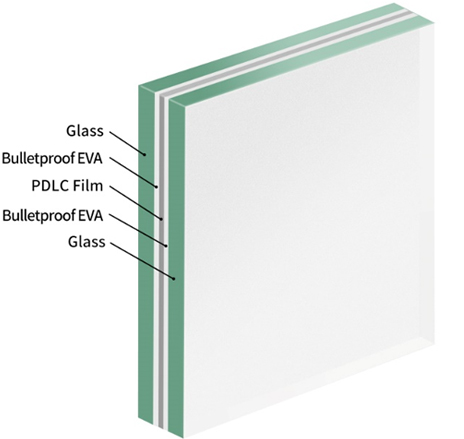

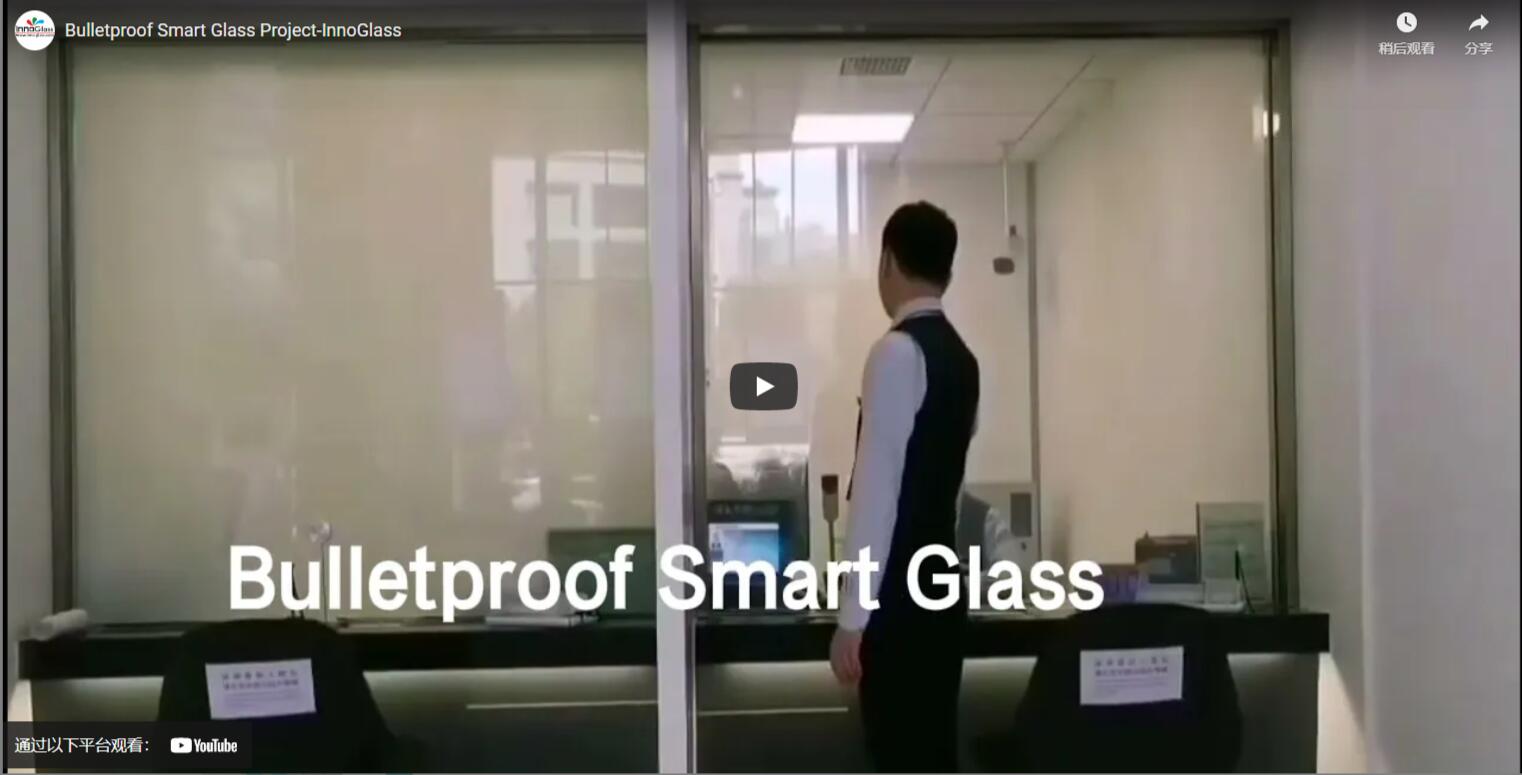

In some bank and other projects with special security requirements, customers hope to combine bulletproof glass and smart glass function, we use special bulletproof film and smart PDLC film to laminated, so as to realize the perfect combination of bulletproof and intelligent privacy protection.
FAQ
Q1:
Is Self-Adhesive Smart Film Cheaper Than Laminated Smart Glass?
A:
It can cost less for an existing glass partition because the glass does not need to be replaced. For new construction, compare the total cost of glass, fabrication, installation, wiring and controls before deciding which option is more economical.
Q2:
Should I Use Laminated Smart Glass or Self-Adhesive Smart Film in a Bathroom?
A:
For glass frequently exposed to water or moisture, laminated smart glass is generally the better starting point, provided its edges and electrical connections are properly designed. Self-adhesive film should be considered only on a dry, protected surface that meets its installation requirements.
Q3:
How Do I Choose Between Laminated Smart Glass and Self-Adhesive Smart Film?
A:
Choose laminated smart glass when ordering new glass or when enclosing the film within the panel is important. Choose self-adhesive smart film when suitable glass is already installed and avoiding replacement is the priority. Confirm the environment, glass dimensions, wiring and total installed cost before ordering.
Q4:
Which Interlayer Does Recommend for Smart Glass Lamination?
A:
We generally recommend a compatible EVA interlayer for our smart film. The EVA grade and lamination process should be selected together to achieve good bonding without damaging the switchable layer.
Q5:
Can an Autoclave Be Used to Produce Laminated Smart Glass?
A:
Yes, an autoclave can be used if the process is suitable for the selected smart film and EVA interlayer. Temperature, pressure, vacuum and cycle time must be set appropriately; a standard PVB glass recipe should not be applied without validation.
Q6:
Why Do Smart Film and Smart Glass Need a Dedicated Transformer?
A:
Smart film and smart glass are designed to operate at a specified AC voltage. Many products use AC 60 V, while others are designed for AC 48 V or AC 110 V. A dedicated transformer supplies the voltage required by the particular product. If the voltage is too low, the film may not reach its intended clear state; if it is too high, the electrical layers may be damaged or break down. Always match the transformer’s output voltage and frequency to the product specification—do not connect smart film directly to the mains supply.
Q7:

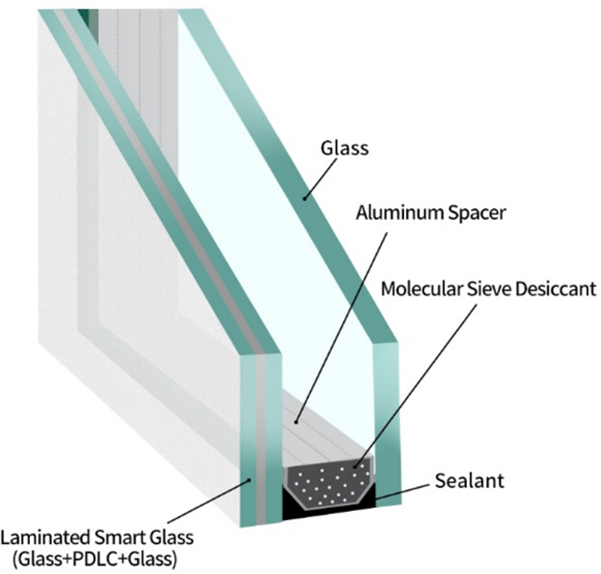

Can Laminated Smart Glass Be Combined with Low-E Glass in an IGU?
A:
Yes. A laminated smart glass panel can be used as one lite of an insulated glass unit (IGU), with Low-E glass incorporated according to the project design. The complete unit should be specified for its required privacy, thermal, structural and electrical performance.
