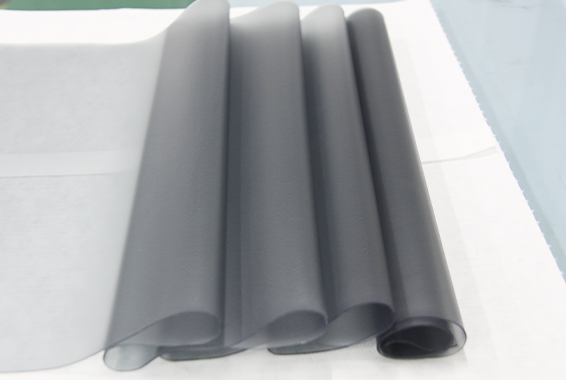

THERMAL INSULATION PVB INTERLAYER FILM/LAMINATED GLASS

In order to improve the energy-saving performance of PVB laminated glass, our R &D department innovatively added nano thermal insulation materials to PVB, which realized the function of traditional PVB to insulate IR and UV rays, and greatly improved the sunshade and energy-saving performance of the products. The processing and use of the products are simple, and the processing technology is the same as that of conventional PVB;

Our thermal insulation PVB can insulate 80-99% IR and 99% UV light, and the visible light transmittance is 60-80%

Inquire Now

Excellent heat insulation and UV insulation function

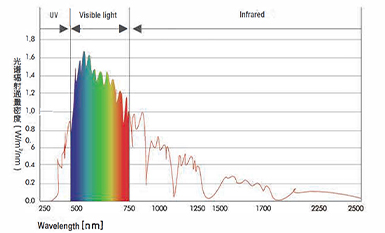

Sunlight is divided into ultraviolet, visible and infrared rays. The heat distribution of solar energy accounts for about 43% of visible light, 3% of ultraviolet light and 54% of infrared ray. Ultraviolet ray is harmful to human health and will accelerate the aging of furniture. Our thermal insulation PVB can isolate ultraviolet, block infrared and enjoy visible sunlight;

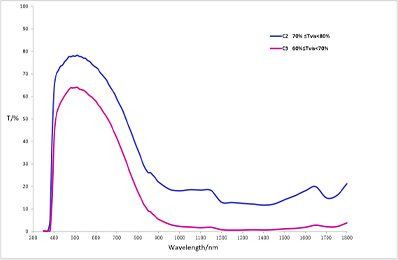

Spectrum of thermal insulation PVB interlayer

Performance Data

Product No	Visible light T%	IR%	UV%	SC
T12	75	s20%	s2%	0.66
TL3	61	≤5%	≤0.5%	0.51

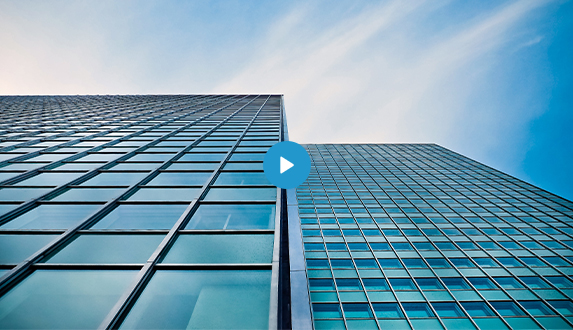

Test Video

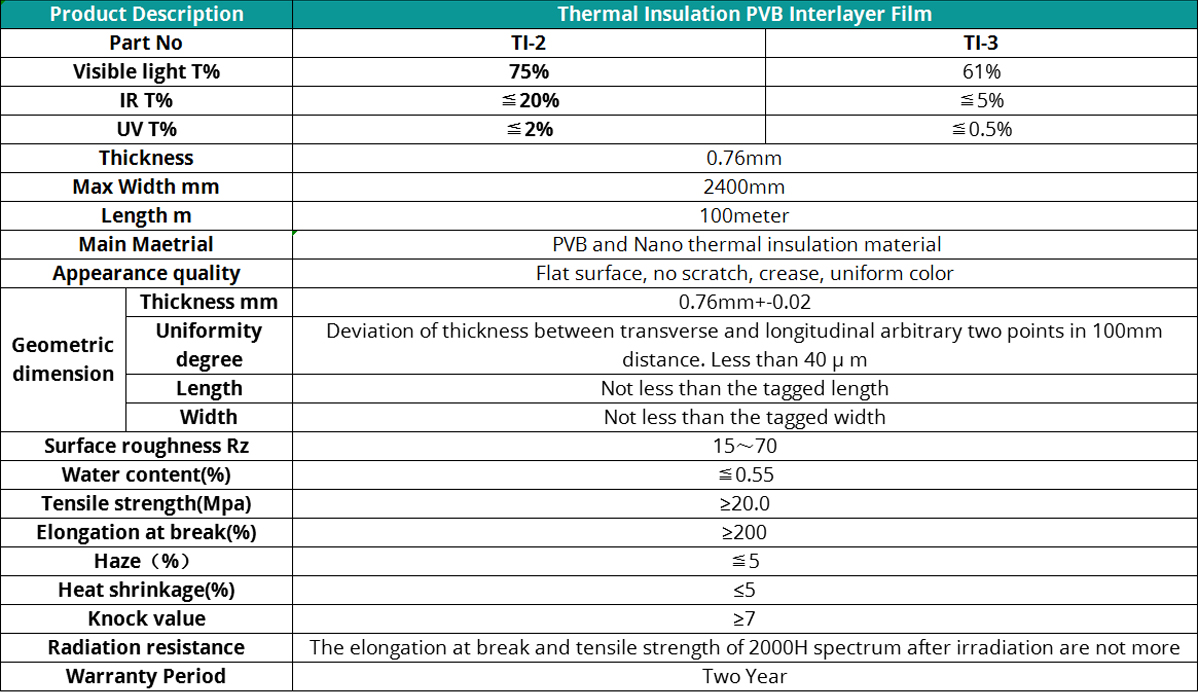

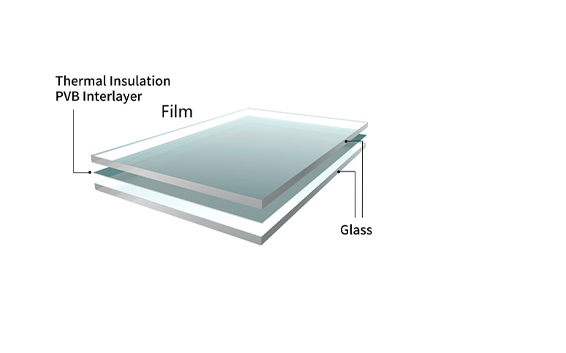

Thermal insulation PVB interlayer film specification

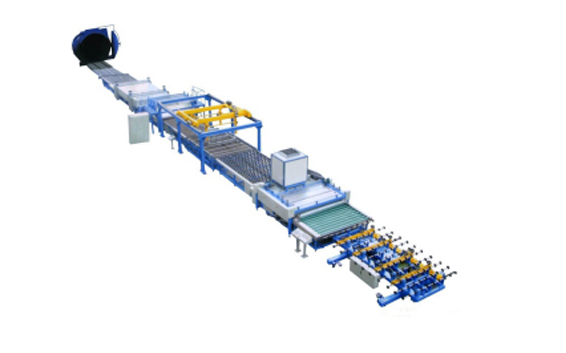

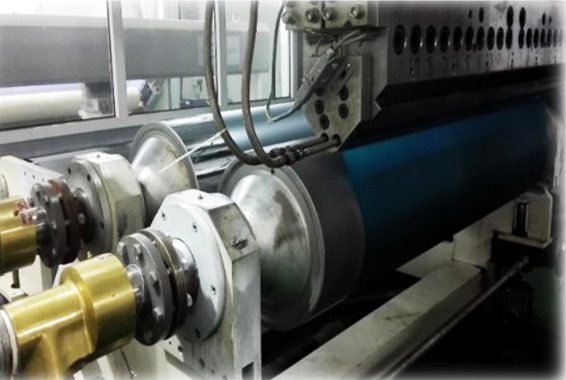

Production Application

Our thermal insulation PVB meets the national standard, the product performance meets the safety standard, the processing is simple, the normal PVB processing technology, can be used in single piece and hollow;

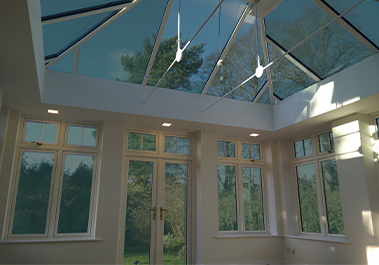

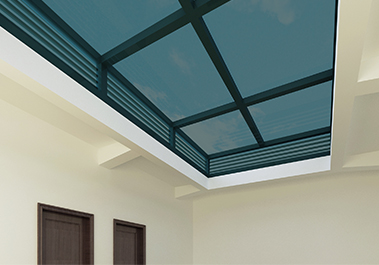

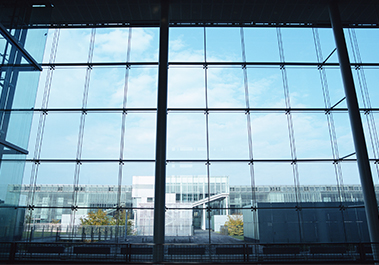

Application Show
